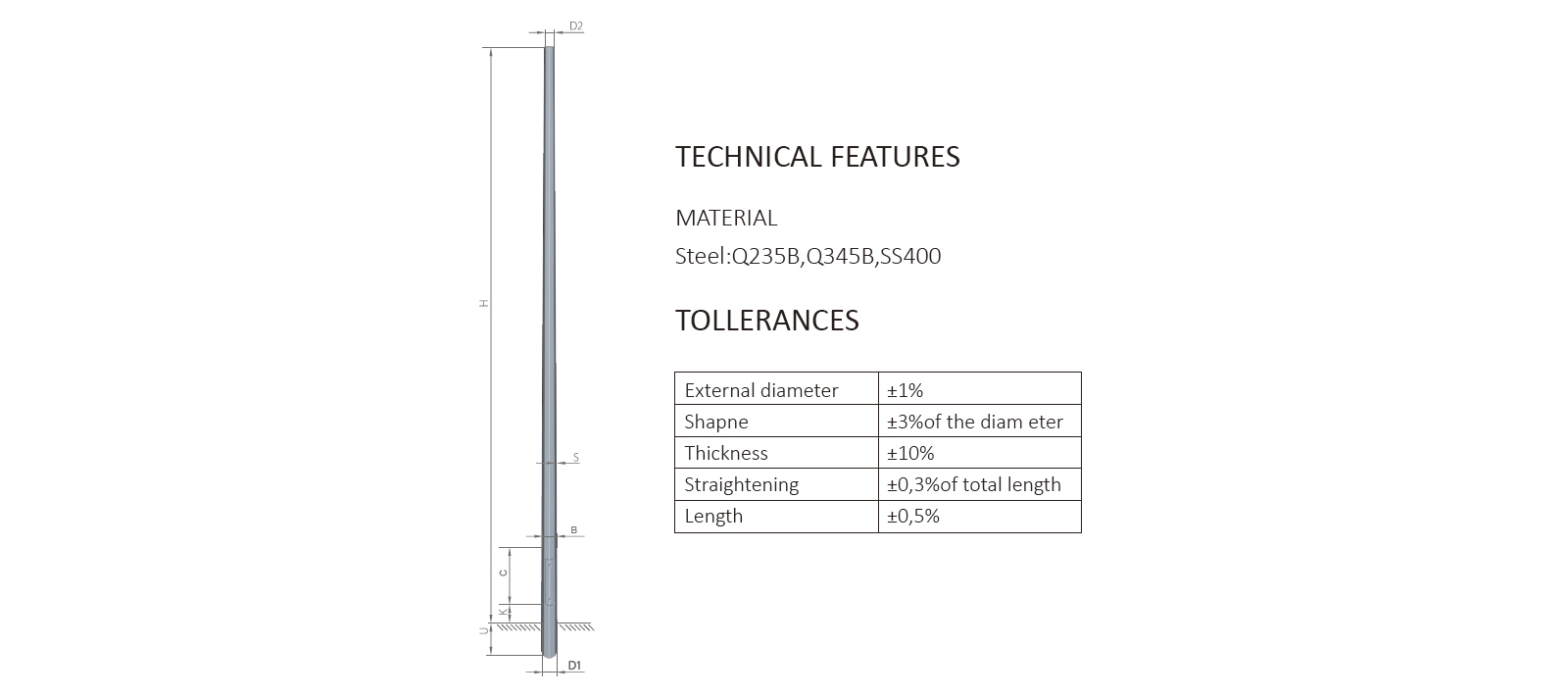

| Type | H | U | K | C | B | D1 | D2 | S | M |
| (m) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| HY3500-60 | 3 | 500 | 500 | 350 | 55 | 115 | 60 | 3 | 28 |
| HY4500-60 | 4 | 500 | 500 | 350 | 70 | 130 | 60 | 3 | 38 |
| HY5500-60 | 5 | 500 | 500 | 350 | 75 | 130 | 60 | 3 | 46 |
| HY6500-60 | 6 | 500 | 500 | 350 | 80 | 135 | 60 | 3 | 55 |
| HY7100-60 | 6.5 | 600 | 750 | 500 | 80 | 135 | 60 | 3 | 60 |
| HY7100-76 | 6.5 | 600 | 750 | 500 | 100 | 150 | 76 | 3 | 69 |
| HY8600-60 | 8 | 600 | 750 | 500 | 100 | 160 | 60 | 3 | 81 |
| HY9100-60 | 8.5 | 600 | 750 | 500 | 110 | 170 | 60 | 3 | 89 |
| HY9100-76 | 8.5 | 600 | 750 | 500 | 110 | 170 | 76 | 4 | 126 |
| HY10600-60 | 10 | 600 | 750 | 500 | 110 | 170 | 60 | 4 | 137 |
| HY11300-60 | 10.5 | 800 | 750 | 500 | 120 | 180 | 60 | 4 | 151 |
| HY11300-76 | 10.5 | 800 | 750 | 500 | 130 | 190 | 76 | 4 | 168 |
| HY12800-76 | 12 | 800 | 750 | 500 | 140 | 195 | 76 | 4 | 193 |
